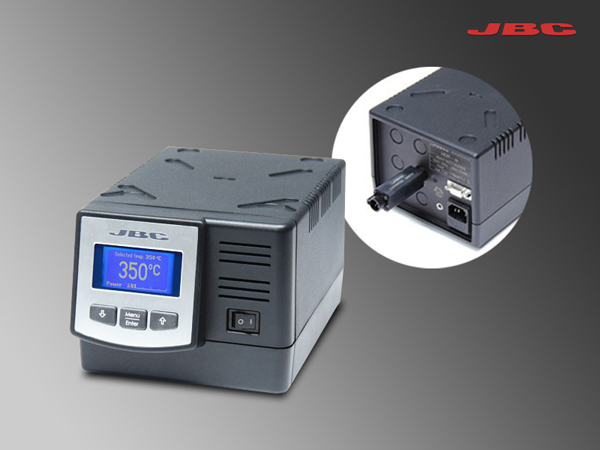

HDR - HD for Robot

Ref. HDR-1B 120V, HDR-2B 230V, HDR-9B 100V

The HDR is a HD Heavy Duty station for extensive soldering applications that suits perfectly to any robotic production system.

Tool is connected via converter to guarantee the intelligent sleep and hibernation features. No stand is required in this case.

The HDR has an USB connector and a RS-232 output with protocol to communicate with robots or PCs.

It also incorporates the JBC exclusive heating system and a menu with over 20 parameters to personalize.

HDR works with the comfortable T470 handpiece and C470 cartridges.

Composition

Control Units:

Tools:

Weight

5.9 kg (13.1 lb)

Size

See individual modules

Voltage(AC)

230V / 120V / 100V

Input Fuse

2A (230V), 4A (120V and 100V)

Output Peak Power

250W / 47V

Temperature selection

90-500 ºC / 190-932 ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

USB interface station-PC

Package weight

6.8 kg (15 lb)

Package dimensions

370x370x200 mm

Manuals:

Brochures:
