DIS Premium Electrical
Ref. DIS-1B 120V, DIS-2B 230V, DIS-9B 100V

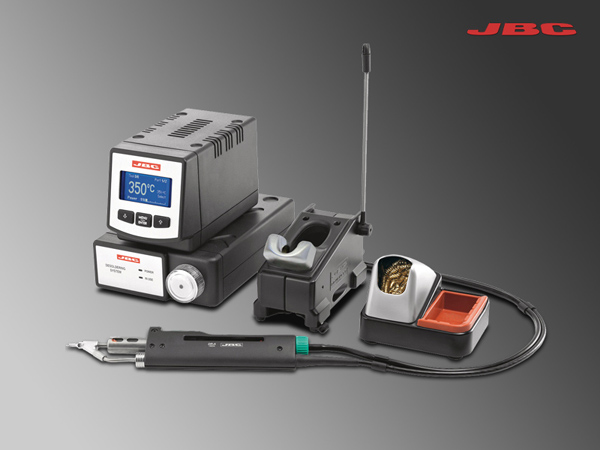

DIS station is designed for desoldering insertion components and for cleaning circuits with SMD components.
It is provided by a DI control unit and a MS electric suction module that creates a vacuum peak at the startup.
It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.
Through the menu you can customize more than 20 functionalities.
Although DI is able to work with any of JBC tools, DIS station works with DR560 desoldering iron.
Composition
Control Units:
Tools:
Accessories:
Features
Weight
5.9 kg (13 lb)
Size
See individual modules
Voltage(AC)
230V / 120V / 100V
Input Fuse
1A (230V), 2A (120V and 100V)
Output Peak Power
130W / 23.5V
Temperature selection
90-450 ºC / 190-840 ºF
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2mV RMS
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Vacuum
75% / 570mmHg / 22.4inHg
Flow rate
9 SLPM
Package weight
6.7 kg (14.9 lb)
Package dimensions
370x370x200 mm
Documentation
Manuals:
Exploded View:
