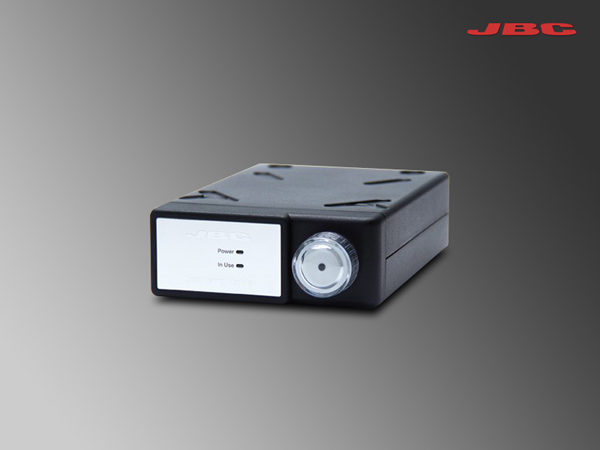

MS-A - Electric suction module

The electric suction module is indispensable for a complete desoldering process.

Its optimized electronic suction system create a vacuum peak at the startup in order to collect the solder before it cools down.

It is equipped with some suction filters easy to change for extending the pump's life.

MS is adaptable to CS, DI, DD and DM control units which manage the tip temperature while the electric suction module sucks the melted solder.

MS module works with the comfortable DS360 or DR560 desoldering irons and their corresponding stands and tips.

Features

Weight

1.2 kg (2.6 lb)

Size

145x55x225 mm

Voltage(AC)

24V (from control unit)

Power

12W

Vacuum

75% / 570mmHg / 22.4inHg

Flow rate

9 SLPM

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

Package weight

1,5 kg (3.2 lb)

Package dimensions

180x290x80 mm
