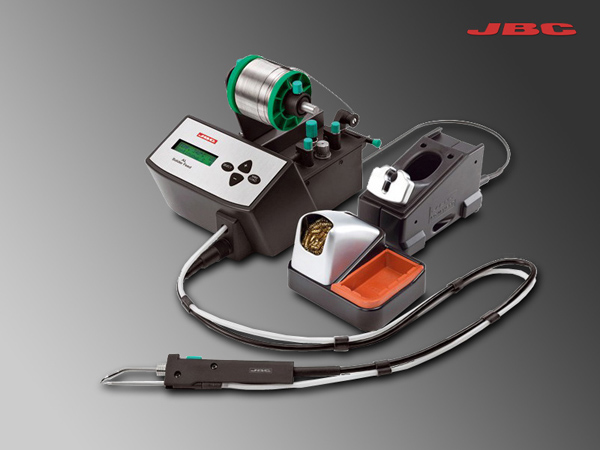

AL Automata forrasz-adagoló állomás

Ref. AL-1A 120V, AL-2A 230V, AL-9A 100V

This is the ideal solution for extensive soldering applications that require one or both free hands.

The AL station automates the soldering process by feeding solder wire.

It is possible to select continuous or discontinuous operation modes.

It incorporates the JBC exclusive heating system with the intelligent sleep and the hibernation feature.

AL station works with the comfortable AL250 Auto-Feed Iron and C250 cartridges.

Premium stations feature all the necessary accessories to make your job easier.

Composition

Soldering stations:

Stands

AL-SD

Tools:

AL250-B Auto-Feed Iron

Cartridges:

C250403

Accessories:

CL9885

Features

Weight

5.8 kg (12.9 lb)

Size

195x200x240mm

Voltage(AC)

230V / 120V / 100V

Input Fuse

1A (230V), 2A (120V and 100V)

Output Peak Power

130W / 23.5V

Temperature selection

90-450 ºC / 190-840 ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

Diameter of solder wire

0.4-1.5mm / 0.02-0.06in

Wire length

5-60mm / 0.2-2.36in

Speed

7mm/s (max) / 0.67in (max)

Package weight

6.7 kg / 14.8 lb

Package dimensions

370x370x200 mm

Documentation

Manuals:

Automatic solder feed manual
AL250 Manual
Stands Manual

Exploded View:

Exploded View Serie 130500
Exploded View Serie 142556

Cartridges Részletes információk »
