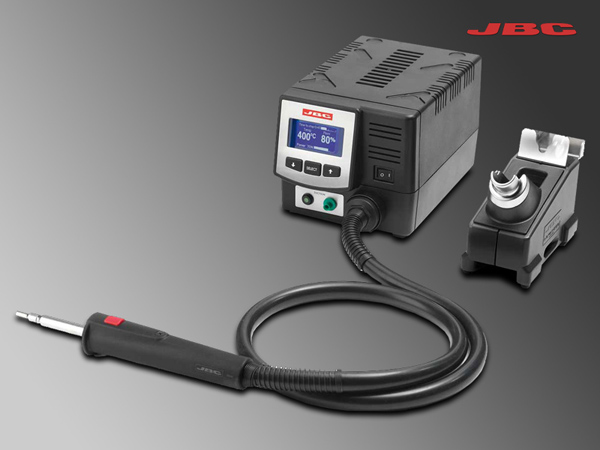

TE-Q Precision Hot Air Station

Ref. TE-1QA 120V, TE-2QA 230V, TE-9QA 100V

TE is a precision hot air station used for quick and safe soldering and desoldering small and medium SMD´s electronic components.

The unit has two work modes -manual and profile- and manages efficiently the temperature and the hot air flow. Through the menu it is possible to customize more functionalities for the process.

The station is supplied with the precise heater for TE and its corresponding stand which incorporates a quick nozzle changer.

TE-Q version does not include protectors and extractors desk.

Composition

Hot Air:

TE-TB, JTE-1A

Stands:

TE-SA

Features

Weight

4.1 kg (9 lb)

Size

See individual modules

Voltage(AC)

230V / 120V / 100V

Input Fuse

4A (230V), 8A (120V and 100V)

Output Peak Power

300W

Temperature selection

Tamb - 450º C / Tamb - 850 ºF

Ambient operating temp.

10-40 ºC / 50-104 ºF

Idle Temp. Stability

+/-20 ºC / +/-36 ºF

ESD Safe

Air Flow Range

4-11 SLPM

Package weight

5.2 kg (11.4 lb)

Package dimensions

475x370x200 mm

Documentation

Manuals:

JTE Manual
Stands Manual

Exploded View:

Exploded View Series 148318
Exploded View Series 149165
