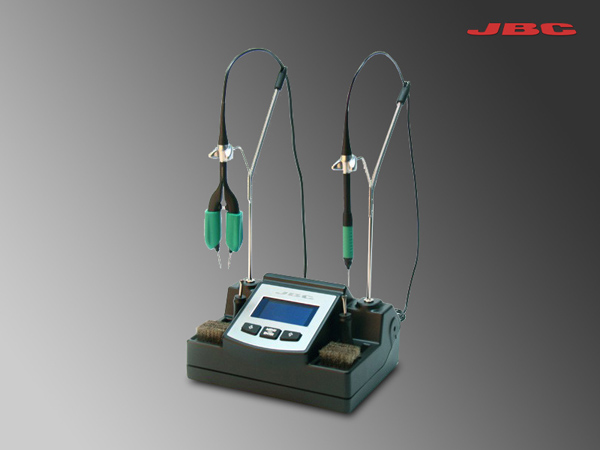

NAST Nano Rework

Ref. NAST-1A 120V, NAST-2A 230V, NAST-9A 100V

The NAST station is the best solution to repair very small-sized high precision components such as chips 0402, 0201, 01005, etc.

It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.

Using the menu you can personalize more than 20 functions to manage the process.

It works simultaneously with NT105 nano soldering iron and NP105 nano tweezers.

The short distance between the tip and the handle offers maximum control even when repairing applications under a microscope.

Composition

Tools:

Cartridges:

Accessories:

Weight

1.6 kg (3.5lb)

Size

170x290x160mm

Voltage(AC)

230V / 120V / 100V

Input Fuse

0.2A (230V), 0.5A (120V and 100V)

Output Peak Power

12W / 7.5V

Temperature selection

90-400 ºC / 190-752 ºF

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

Package weight

2.1kg (4.6lb)

Package dimensions

300x275x135mm

Manuals:

Exploded View:

Electric:
