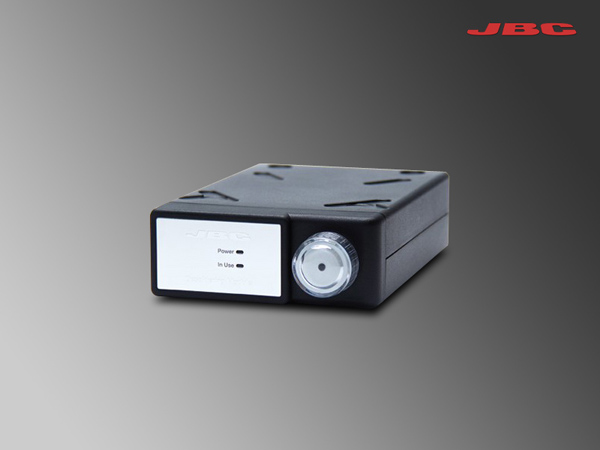

MV-A - Pneumatic suction module




The pneumatic suction module is indispensable for a complete desoldering process.


Using compressed air and a Venturi valve, this system offers the best result because the vacuum ramps up instantly. Therefore it is required available compressed air at the operator´s bench


It is equipped with some suction filters easy to change in order to extend the pump's life.


MV is adaptable to CV, DI, DD and DM control units which manage the tip temperature while the pneumatic suction module sucks the melted solder.


MV module works with the comfortable DS360 or DR560 desoldering irons and their corresponding stands and tips.


Features


Weight
0.7 kg (1.6 lb)
Size
145x55x225 mm
Voltage(AC)
24V (from control unit)
Power
3W
Air pressure
3 - 6 Bar
Vacuum
90% / 680mmHg / 26.8inHg
Flow rate
15 SLPM
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD Safe


Package weight
0.9 kg (2.2 lb)
Package dimensions
180x290x80 mm



Compatible moduls Részletes információk »




CV - Pneumatic Desoldering


DI - 1 tool control unit


DD - 2 tools Control Unit


DM - 4 tools control unit



Connectable tools Részletes információk »




DS360-A - Microdesoldering Iron


DR560-A - Desoldering Iron
