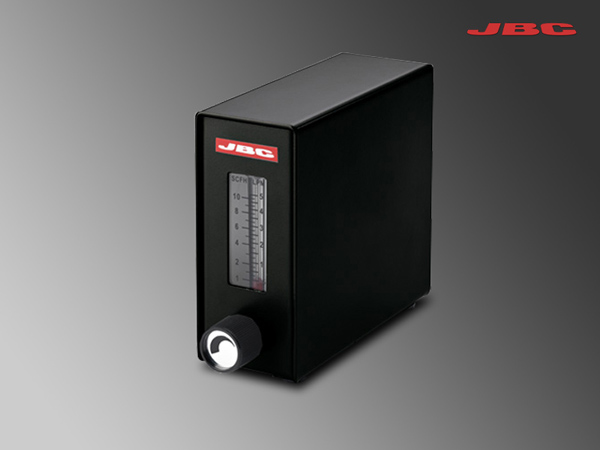

MN-A - Nitrogen flow regulator

An external nitrogen circuit is needed or the nitrogen generator from JBC GN-A

Features

Weight

1.2 kg (2.7 lb)

Size

50x120x130 mm

Voltage(AC)

24V (from control unit)

Power

N2 flow regulation

0,5 - 3,5 SLPM (5 Bar)

Max. pressure

6 Bar

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

Package weight

1.4 kg (3.1 lb)

Package dimensions

260x125x83 mm

Manuals:

Exploded View:

Electric:
