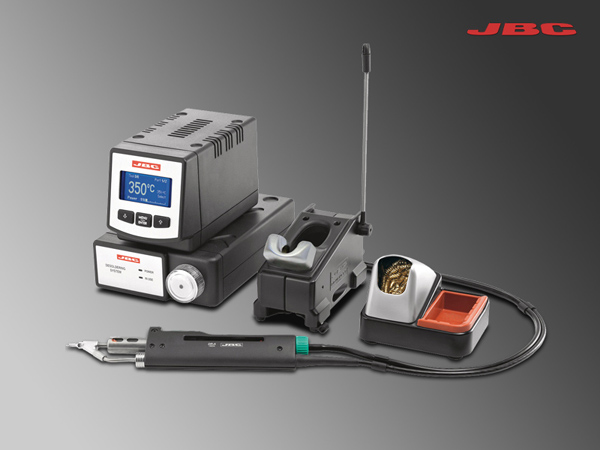

DIV - Premium Pneumatic

Ref. DIV-1B 120V, DIV-2B 230V, DIV-9B 100V

DIV station is designed for desoldering insertion components and for cleaning circuits with SMD components.

The MV suction module offers the best result using a Venturi valve. This system requires available compressed air at the operator´s bench.

It incorporates the JBC exclusive heating system, even The intelligent sleep and the hibernation feature.

Through the menu you can customize more than 20 functionalities.

Although DI suits any of JBC tools, DIV station works with DR560 desoldering iron.

Composition

Control Units:

DI, MV-A

Tools:

DR560-A

Accessories:

CL9885

Features

Weight

5.4 kg (11.9 lb)

Size

See individual modules

Voltage(AC)

230V / 120V / 100V

Input Fuse

1A (230V), 2A (120V and 100V)

Output Peak Power

130W / 23.5V

Temperature selection

90-450 ºC / 190-840 ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

USB interface station-PC

Air pressure

3 - 6 Bar

Vacuum

90% / 680mmHg / 26.8inHg

Flow rate

15 SLPM

Package weight

6.3 kg (13.8 lb)

Package dimensions

370x370x200 mm

Documentation

Manuals:

DI Manual
Air Pressure Desoldering System Manual
Stands Manual
DR560-A Manual
Tip Cleanning Stand Manual

Exploded View:

Exploded View Serie 139783
Exploded View Serie 142333
