CP mikro-csipesz állomás

Ref. CP-1B 120V, CP-2B 230V, CP-9B 100V

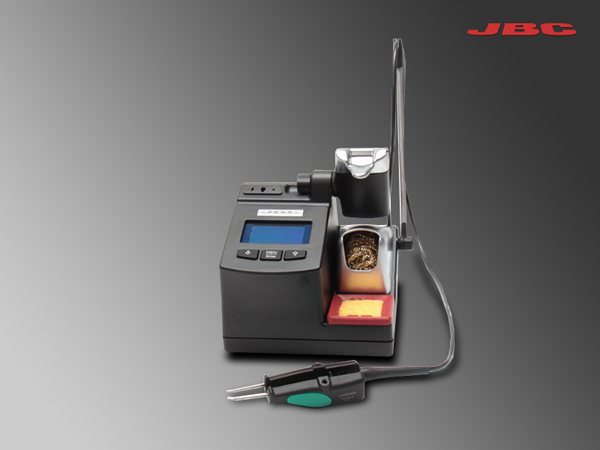

The CP is a soldering and desoldering station for small and medium SMD components.

It incorporates the JBC exclusive heating system that increases work efficiency thanks to the fast temperature recovery.

The intelligent sleep and hibernation features extend a tip life more than 5 times.

Using the menu you can personalize more than 20 functions in help to manage the soldering process.

CP works with the lightest and ergonomic PA120 microtweezers and C120 cartridge.

Compact stations feature all the necessary accessories to make your job easier.

Composition

Tools:

Cartridges:

Weight

2.7 kg (6 lb)

Size

150x175x145mm

Voltage(AC)

230V / 120V / 100V

Input Fuse

1A (230V), 2A (120V and 100V)

Output Peak Power

80W / 23.5V

Temperature selection

90-450ºC / 190-840ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40ºC / 50-104ºF

ESD Safe

Package weight

3.1kg (6.8 lb)

Package dimensions

235x235x260mm

Manuals:

CP Manual
PA120-A Manual

Brochures:

Exploded View:

Exploded View
