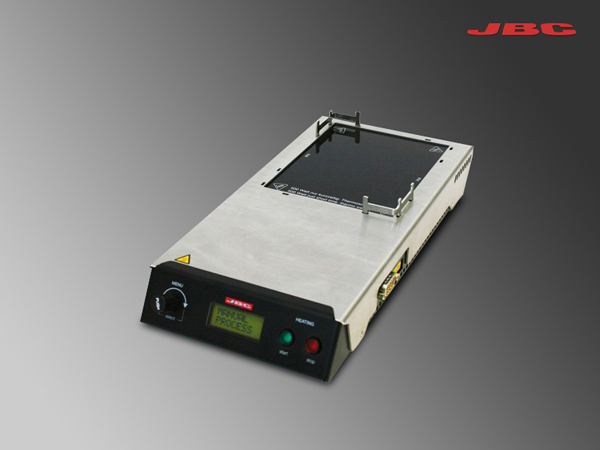

PH Infrared Preheater

Ref. PH-1A 120V, PH-2A 230V

JBC preheater (PH) facilitates any soldering or desoldering job by applying infrared.

The heat projected under the PCB allows you to reduce the working time and the tool's temperature.

The PH can be operated manually or automatically and it is possible to customize up to 99 different programs.

The PC connection enables transfer of the selected programs directly to the computer and conversely.

Product Composition

Kiegészítők:

Weight

1.9 kg (4.2 lb)

Dimensions

155 x 290 x 40 mm

Voltage

230V / 120V

Nominal Power

600VA

Heated Area

75 or 130 x 105 mm (2 zones)

Heating Power

50 to 500 watt

Heating Rate

3,5ºC/s

Temperature Rate

50 to 170ºC

Temperature Measurement

K Thermo couple

Cooling rate

0-10 min (external fan required)

Programs

up to 99

Fuse

4 A T and 0,160 A MT at 230V
6,3 A T and 0,315 A MT at 120V

Package weight

2.8 kg (6.2 lb)

Package dimensions

370x370x200mm
