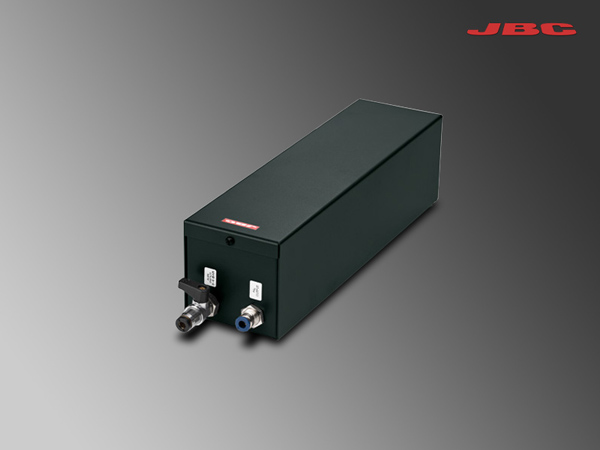

GN-A

Nitrogen module generator, powered by compressed unit

The GN-A provides nitrogen to the handpiece in order to contribute to heating the soldering area while protecting tips of the oxidation.

The generator separates nitrogen from the compressed air through the action of a high-performance membrane.

GN-A works with any station of the modular line and must be connected to MN-A nitrogen flow regulator.

Features

Weight

2 kg (4.4 lb)

Size

85x90x355 mm

Compressed air pressure

4 - 6 bar

Gas concentration

Up to 99%

Concentrated N2 gas flow

1 - 2 SLPM

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

Package weight

2.6 kg (5.8 lb)

Package dimensions

370x300x137 mm
